BT-P5A
P5 indoor LED screen

Pixel Pitch：5mm
Chip type :SMD2121

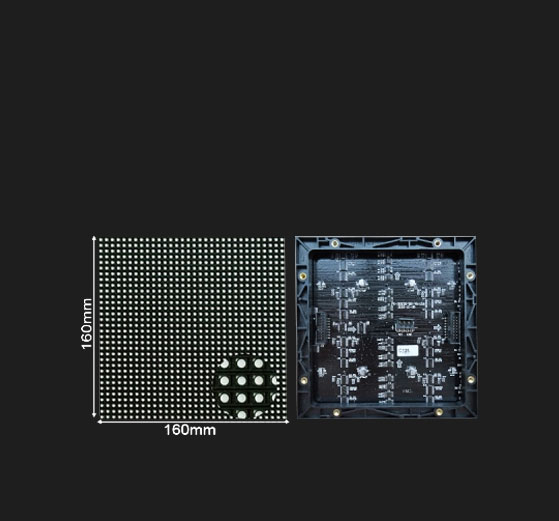

LED Module Size（W*H） :160MM x160MM
LED Module Resolution(W*H):32Dots X 32 Dots
Color Configuration ：1R1G1B
Pixel Density：40000Dots/㎡

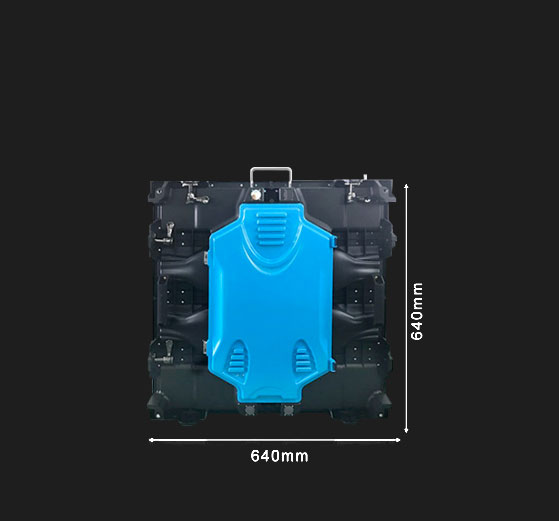

Aluminum  Cabinet Size(WX H):480MM X 480MM/
640MM X 640MM

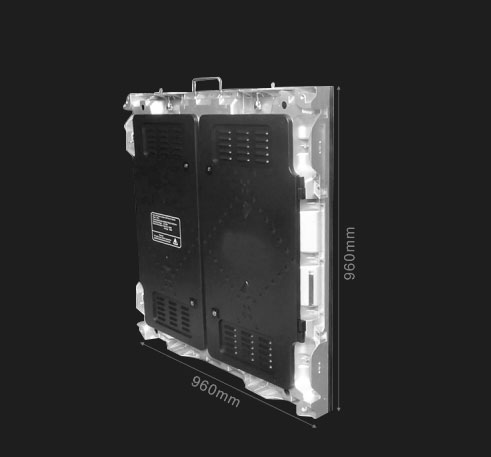

Iron Cabinet Size :960MM x 960MM
Cabinet Material: Aluminum /Iron
Working Voltage : AC110/220V±15%  40～65HZ
Average Power Consumption:350W/m2
Max. Power Consumption ：450W/m2
